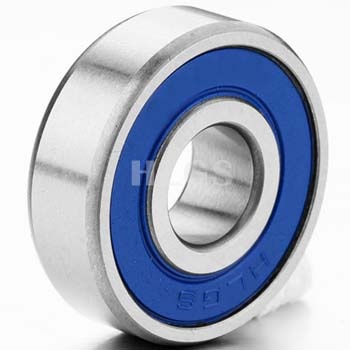

Product name : R2A bearing
Product No. : R2A Bearing 3.175x12.7x4.366mm
Details:
R2A bearing has open, seals and shield types, and v-groove inner ring is available.
It widely used in precision instruments, micro motor, remote control model, etc
| Demesions: | |
| Bearing No. | R2A, R2A-ZZ, R2A-2RS, R2AZ, R2ARS, R2A ZZ, R2A RS |
| Bore diameter (d) | 0.125 inch |
| Outer diameter (D) | 0.3750 inch |
| Width (B) | 0.1562 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 121 |
| Static(Cor) | 39 |
| Max. Speed(RPM) | |
| Grease | 56000 |
| Oil | 67000 |
| Weight(g) | |
| Approx. | 1.04 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
