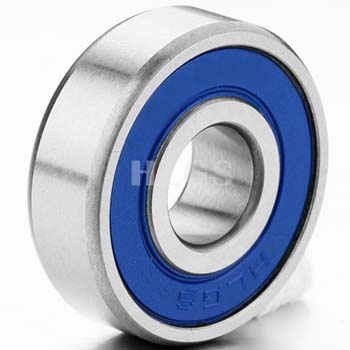

Product name : R8 bearings
Product No. : R8 Bearing 12.7x28.575x6.35mm
Details:
R8 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | R8, R8-ZZ, R8-2RS, R8Z, R8RS, R8 ZZ, R8 RS |
| Bore diameter (d) | 0.5 inch |
| Outer diameter (D) | 1.125inch |
| Width (B) | 0.25 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 1149 |
| Static(Cor) | 511 |
| Max. Speed(RPM) | |
| Grease | 27000 |
| Oil | 32000 |
| Weight(g) | |
| Approx. | 11.6 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
