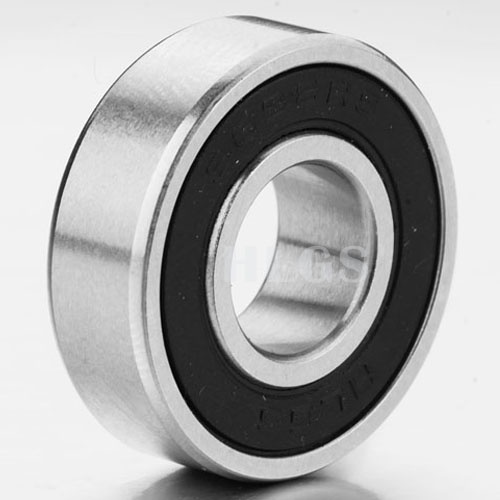

Product name : SR22 bearings
Product No. : SR22 Bearing 34.925x63.5x11.112mm
Details:
SR22 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | SR22 SR22-ZZ, SR22-2RS, SR22Z, SR22RS, SR22 ZZ, SR22 RS |
| Bore diameter (d) | 1.375 inch |
| Outer diameter (D) | 2.5 inch |
| Width (B) | 0.4375 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 4067 |
| Static(Cor) | 2247 |
| Max. Speed(RPM) | |
| Grease | 7000 |
| Oil | 8000 |
| Weight(g) | |
| Approx. | 105 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
