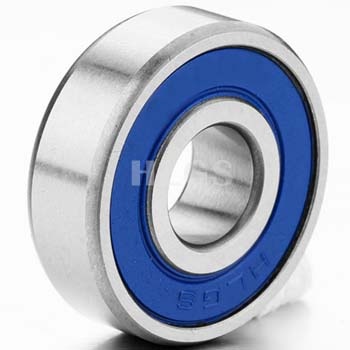

Product name : R16 bearings
Product No. : R16 Bearing 25.4x50.8x9.525mm
Details:
R16 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | R16 R16-ZZ, R16-2RS, R16Z, R16RS, R16 ZZ, R16 RS |
| Bore diameter (d) | 1.000inch |
| Outer diameter (D) | 2 inch |
| Width (B) | 0.375 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 2652 |
| Static(Cor) | 1307 |
| Max. Speed(RPM) | |
| Grease | 9000 |
| Oil | 11000 |
| Weight(g) | |
| Approx. | 87 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
