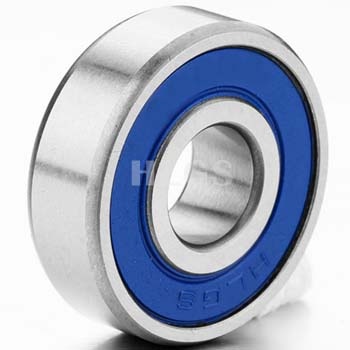

Product name : R24 bearings
Product No. : R24 Bearing 38.x66.675x11.112mm
Details:
R24 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | R24 R24-ZZ, R24-2RS, R24Z, R24RS, R24 ZZ, R24 RS |
| Bore diameter (d) | 1.5 inch |
| Outer diameter (D) | 2.625 inch |
| Width (B) | 0.4375 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 4426 |
| 4426Static(Cor) | 2446 |
| Max. Speed(RPM) | |
| Grease | 5000 |
| Oil | 6000 |
| Weight(g) | |
| Approx. | 140 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
