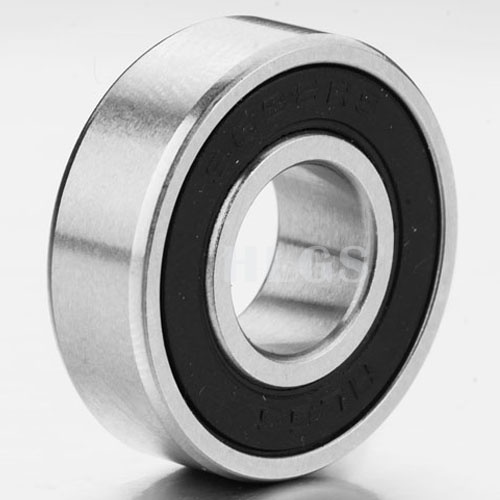

Product name : SR3 bearings
Product No. : SR3 Bearing 4.762x12.7x3.969mm
Details:
SR3 bearing has open, seals and shield types, and v-groove inner ring is available.
It widely used in precision instruments, micro motor, remote control model, etc
| Demesions: | |
| Bearing No. | SR3, SR3-ZZ, SR3-2RS, SR3Z, SR3RS, SR3 ZZ, SR3 RS |
| Bore diameter (d) | 0.1875 inch |
| Outer diameter (D) | 0.5000 inch |
| Width (B) | 0.1562 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 249 |
| Static(Cor) | 88 |
| Max. Speed(RPM) | |
| Grease | 43000 |
| Oil | 5000 |
| Weight(g) | |
| Approx. | 2.21 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
