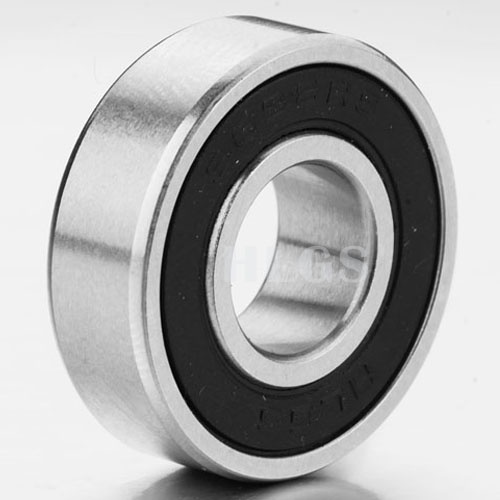

Product name : SR156 bearings
Product No. : SR156 bearing
Details:
SR156 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | SR156, SR156-ZZ, SR156-2RS, SR156Z, SR156RS, SR156 ZZ, SR156 RS |
| Bore diameter (d) | 0.1875 inch |
| Outer diameter (D) | 0.3125 inch |
| Width (B) | 0.1094 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 69 |
| Static(Cor) | 27 |
| Max. Speed(RPM) | |
| Grease | 53000 |
| Oil | 63000 |
| Weight(g) | |
| Approx. | 0.4 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
