  • R144 bearings

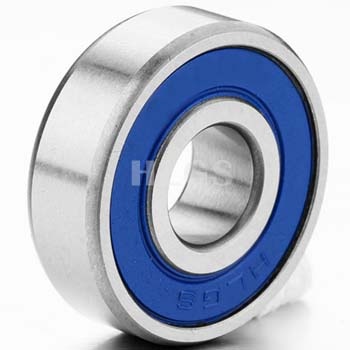

Product name : R144 bearings
Product No. : R144 bearing
←[Previous Product]              [Next Product]→
Details:


R144 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. R144R144-ZZ, R144-2RS, R144Z, R144RS, R144 ZZ, R144 RS
Bore diameter (d) 0.125 inch
Outer diameter (D) 0.2500 inch
Width (B) 0.0937 inch
Basic Load Rating(N)
Dynamic(Cr) 54
Static(Cor) 17
Max. Speed(RPM)
Grease 67000
Oil 80000
Weight(g)
Approx. 0.27
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
