Direct Answer: Load Capacity Comparison In terms of raw load capacity, a Cylindrical Roller Bearing generally outperforms a Deep Groove Ball Bearing, particularly under radial loads. This is because roller bearings use line contact between the rolling elements and the raceway, distributing load across a larger surface area, while a Deep Groove Ball Bearing relies on point contact, which concentrates stress into a smaller zone. As a result, for the same bore size, a Cylindrical Roller Bearing can typically handle radial loads that are 30% to 50% higher than a comparable Deep Groove Ball Bearing. However, the Deep Groove Ball Bearing holds a clear advantage in handling combined radial and axial loads, as well as in applications requiring higher rotational speeds and lower friction. Choosing between the two ultimately depends on the direction and magnitude of the load, the required speed, and the available installation space. Below, we break down the technical reasoning behind these differences and provide practical guidance for selecting the right bearing type. Why Contact Geometry Determines Load Capacity The fundamental difference between these two bearing types lies in how the rolling elements interact with the inner and outer raceways. A Deep Groove Ball Bearing uses spherical balls that touch the raceway at a single point. A single row deep groove ball bearing is the most common configuration, offering a balanced combination of radial and limited axial load support, but the point contact inherently limits how much load can be transferred before stress concentration causes premature wear or deformation. A Cylindrical Roller Bearing, by contrast, uses cylindrical rollers that make line contact with the raceway. This line contact spreads the applied load over a much larger surface, significantly reducing contact stress per unit area. This is why Cylindrical Roller Bearings are the preferred choice in heavy-duty industrial machinery such as gearboxes, rolling mills, and large electric motors, where radial loads are substantial and axial loads are minimal or nonexistent. Contact Stress and Fatigue Life Lower contact stress in a Cylindrical Roller Bearing translates directly into longer fatigue life under heavy radial loads. According to standard bearing life calculations (based on the L10 fatigue life model), a Cylindrical Roller Bearing can achieve a rated dynamic load capacity roughly 40% higher than a same-size Deep Groove Ball Bearing, assuming identical operating speed and lubrication conditions. Load Capacity Data Comparison The table below illustrates typical dynamic load rating differences for bearings of comparable bore size, based on common industry reference values. Bore Size (mm) Deep Groove Ball Bearing (kN) Cylindrical Roller Bearing (kN) 30 19.5 28.6 50 35.8 52.0 80 58.2 89.5 Approximate dynamic load ratings for comparable bore sizes, illustrating the general capacity advantage of Cylindrical Roller Bearings under radial loading. These figures are representative rather than absolute, since actual load ratings vary by series, cage design, and material grade. Still, the pattern is consistent: as bore size increases, the gap in radial load capacity between the two bearing types tends to widen further. Axial Load Handling: Where the Deep Groove Ball Bearing Excels While Cylindrical Roller Bearings dominate in pure radial load scenarios, they are largely incapable of supporting axial (thrust) loads unless specifically designed with flanges or combined with a separate thrust bearing. A Deep Groove Ball Bearing, by contrast, can support axial loads in both directions simultaneously with radial loads, making it far more versatile for applications where shaft loading is not purely radial. This is particularly relevant in electric motors, fans, pumps, and household appliances, where a single-row deep groove ball bearing is often chosen specifically because it eliminates the need for a secondary thrust bearing, simplifying design and reducing overall system cost. Typical Axial-to-Radial Load Ratio Deep Groove Ball Bearing: can typically handle axial loads up to 50% to 70% of the radial load capacity, depending on internal clearance and contact angle. Cylindrical Roller Bearing: axial load capacity is minimal or zero in standard configurations, requiring flanged or specialized designs for any thrust support. Speed Capability and Its Relationship to Load Load capacity does not exist in isolation from speed. A Deep Groove Ball Bearing generates less friction due to point contact, allowing it to operate at higher rotational speeds under lighter loads. A Cylindrical Roller Bearing, while capable of carrying heavier loads, tends to generate more heat at high speeds due to the larger contact area, which can reduce its effective speed rating unless enhanced lubrication or cooling is applied. This creates a practical trade-off: applications requiring high speed with moderate loads, such as spindles or small motors, often favor the single row deep groove ball bearing, while applications requiring heavy radial loads at moderate speeds, such as industrial gearboxes, favor the Cylindrical Roller Bearing. Practical Selection Guidelines Selecting between these two bearing types should be based on a clear understanding of the application's load profile. The following considerations can help guide the decision. Determine whether the load is purely radial, purely axial, or combined. Combined loads generally favor a Deep Groove Ball Bearing. Assess the magnitude of the radial load. Heavy radial loads with minimal axial component favor a Cylindrical Roller Bearing. Evaluate required rotational speed, since higher speeds typically favor a single row deep groove ball bearing due to lower friction. Consider space constraints, as Cylindrical Roller Bearings often require slightly more radial space for equivalent load capacity. Factor in maintenance and lubrication access, since Deep Groove Ball Bearings are generally more tolerant of minor misalignment and less frequent lubrication cycles. Summary of Key Differences Characteristic Deep Groove Ball Bearing Cylindrical Roller Bearing Radial Load Capacity Moderate High Axial Load Capacity Moderate (Bidirectional) Minimal or None Speed Capability High Moderate Misalignment Tolerance Better Limited General performance comparison summarizing the trade-offs between Deep Groove Ball Bearings and Cylindrical Roller Bearings. In conclusion, neither bearing type is universally superior. The Cylindrical Roller Bearing wins on pure radial load capacity, while the Deep Groove Ball Bearing offers greater versatility across combined loading conditions, higher speeds, and simpler installation. A single row deep groove ball bearing remains one of the most widely used bearing types precisely because it balances these factors effectively across a broad range of general-purpose industrial and commercial applications. References / Sources AIMS Industrial. Deep Groove Ball Bearing Guide: 6200/6300, Seals & Brands. aimsindustrial.com.au(2025). Ningbo Sanya Bearing Co., Ltd. Grooved vs. Deep Groove Ball Bearings: Key Differences & Applications. sanyabearing.com Lily Bearing. Spherical vs. Cylindrical Roller Bearings: Engineer's Guide. blog.lily-bearing.com BearingBrain. Ball Bearing vs Roller Bearing: When to Use Which. bearingbrain.com

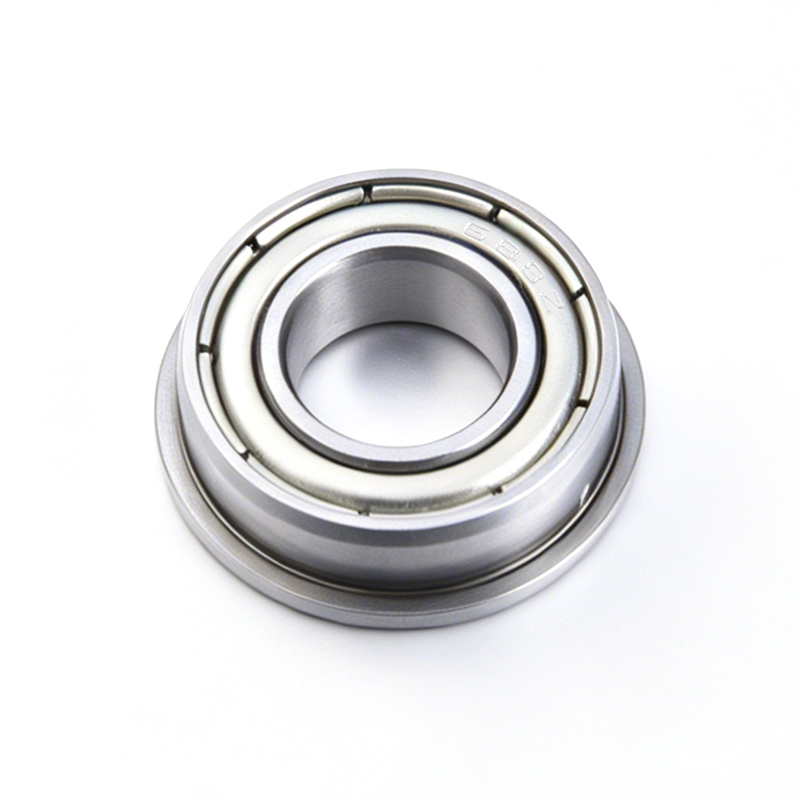

What Do Flanged Bearings Do A flanged bearing supports a rotating shaft and locks it in a fixed axial position, using a built-in lip or collar (the flange) on the outer ring that bolts directly to a frame, wall, or housing. Instead of needing a separate bearing plus a mounting bracket, the flange itself becomes the mounting interface, which simplifies assembly and keeps the bearing from sliding sideways under thrust load. In practical terms, a flanged bearing does three jobs at once: it lets the shaft spin with low friction, it carries the radial load pressing down on the shaft, and it resists axial (side-to-side) forces that would otherwise push the bearing out of place. This combination is why flanged designs show up so often in conveyors, gearboxes, pumps, and motors where the bearing has to be perpendicular-mounted rather than simply pressed onto a shaft. How the Flange Changes Bearing Performance The flange is not a separate bearing type on its own; it is an option added to an existing bearing, such as a ball bearing, roller bearing, or plain bushing. Adding the flange changes how the bearing behaves in three specific ways. Axial Locking If any force pushes along the length of the shaft, the flange acts as a shoulder that stops the bearing from shifting. This is critical in equipment that starts and stops frequently, such as conveyor drives, where repeated thrust would gradually walk an unflanged bearing out of position. Vibration Resistance Because the flange bolts directly to the housing, it resists loosening under vibration better than a plain interference or adhesive fit. This is one reason automotive components, which face constant vibration and heat cycling, frequently specify flanged bearings over plain press-fit designs. Simplified Mounting A flanged bearing can be bolted straight to a flat surface without machining a separate bore or housing pocket. This cuts assembly steps and part count, which matters on high-volume production lines and field repairs alike. Main Types of Flanged Bearings by Internal Design The flange can be added to several different internal bearing constructions, and the choice of internal design determines load capacity, speed rating, and cost. Four internal types are most common. Type Load Handling Typical Use Plain (journal) bearing Low to moderate radial, sliding contact Household appliances, light machinery Cylindrical roller bearing High radial, moderate thrust Gearboxes, industrial drives Spherical roller bearing High radial and axial, self-aligning Conveyors, heavy agricultural equipment Tapered roller bearing High combined radial and thrust Vehicle hubs, heavy-duty gear drives Comparison of common internal bearing designs used inside a flanged housing Spherical roller bearings are especially common in flange-mounted units because their barrel-shaped rollers tolerate minor shaft misalignment, which is a frequent issue on long conveyor runs or equipment bolted to an imperfectly flat frame. Flanged Bearing Types by Mounting Bolt Pattern Separately from the internal rolling element, flanged bearings are also classified by how many mounting holes the flange has, since this determines how much axial and radial load the mounting itself can resist. 2-bolt flange: Two holes on opposite sides, diamond or wing-shaped housing. Suited to light to medium loads and slow-rotating conveyor systems. 3-bolt flange: A triangular bolt pattern that offers more resistance to rotation of the housing itself, used on moderate-load rotary equipment. 4-bolt flange: A square or round pattern that gives the most stable mount, used on heavier loads and higher-vibration equipment such as pumps and fan assemblies. As a general rule, more mounting bolts mean better resistance to twisting forces on the housing, so heavier or faster equipment tends to specify 4-bolt flanges even when the internal bearing itself would tolerate a lighter mount. Common Applications Across Industries Flanged bearings appear anywhere a shaft needs to be supported from a wall, frame, or plate rather than mounted inline. Typical examples include: Conveyor belt systems in material handling and baggage handling, where the bearing bolts directly to the frame rail Agricultural machinery, such as tillers and harvesters, where high vibration and dust demand a securely locked bearing Automotive components, including axles and steering assemblies, where thermal cycling and constant vibration rule out adhesive or press-fit mounting alone HVAC belt drives and fan assemblies, where the bearing must resist axial thrust from the belt tension Food processing and packaging equipment, where sealed flanged units keep contaminants out of the raceway A commonly cited example is the F209 flanged unit, which pairs a deep groove ball bearing with a cast iron housing and is rated for combined radial and axial loads in mining, agriculture, and construction settings, illustrating how the flange and internal bearing work together in one compact assembly. How to Choose the Right Flanged Bearing Selecting a flanged bearing comes down to matching four factors to the application: load direction, speed, environment, and mounting space. Working through these in order avoids the most common selection mistakes. Match the Load Type If the application has significant axial thrust in addition to radial load, such as a belt-tensioned shaft, choose a spherical or tapered roller design rather than a plain bushing, since plain flanged bushings are best suited to light axial loads only. Check the Speed and Temperature Range Every flanged bearing has a maximum safe operating speed, which depends on lubrication and load. Running a bearing above its rated speed shortens its service life well before the statistically expected L10 rating life is reached. Consider the Housing Material Cast iron flanged housings resist wear and heavy loads well, making them a common choice for construction and mining equipment, while metal-polymer housings suit light to medium loads in cleaner environments such as electronics or household appliances. Confirm the Bolt Pattern Fits the Frame Before ordering, verify that the 2-bolt, 3-bolt, or 4-bolt hole spacing matches the existing frame or housing, since retrofitting a different bolt pattern onto an existing structure often costs more than simply specifying the correct flange from the start.

Fundamental Definitions and Classifications of Miniature Transmission Systems In modern precision mechanical design, miniaturization has become the core driver of technological progress. From lightweight drone motors to precision handheld medical devices, miniature transmission systems play a role akin to "nerve endings" in critical functions. To understand this field, it is first necessary to define the boundaries between miniature bearings and micro bearings. Typically, we classify bearings with an outer diameter of less than 9mm and an inner diameter of 1mm to 3mm as miniature bearings, while products with even smaller outer diameters or those used in extremely compact spaces are termed "micro bearings." Although these components are tiny, they must withstand complex dynamic loads while ensuring extremely high rotational precision. The evolution of mini bearings reflects the human pursuit of space efficiency and energy optimization. In early precision watch mechanisms, miniature bearings achieved a qualitative shift in reducing frictional loss by minimizing physical contact areas. Today, in high-speed cooling fans or miniature gyroscopes, they ensure precise equipment control through high operational stability. For engineers, understanding industry standards for miniature bearings is vital. Currently, mainstream international size grading is based on ISO and ABEC standards, which specify not only inner diameter, outer diameter, and width values but also define rotational tolerances. Standardization not only reduces the difficulty of design and replacement but also makes global precision collaboration possible. To intuitively display the classification differences of these miniature components, the following table outlines their main technical parameter characteristics: Bearing Type Typical Size Characteristics (Outer Diameter) Core Application Fields Load Characteristics Standard Miniature Bearings 5mm - 9mm Household motors, fitness equipment Primarily radial load Ultra-miniature Bearings 2mm - 4mm Electronic equipment, precision instruments Light load, high speed Precision-grade Bearings 3mm - 9mm Medical devices, model aviation High rotational precision, low noise During the initial design phase, deviating from these standard sizes not only increases the cycle and cost of custom development but can also lead to premature bearing failure due to unreasonable lubrication channel design. Therefore, becoming familiar with these classifications is not just a technical requirement, but the first step in ensuring the long-term operation of miniature systems. In-depth Analysis: Ball Bearings and Geometric Diversity At the heart of miniature transmission systems, miniature ball bearings occupy an absolute market position due to their unique rolling structure. The core logic of ball bearings lies in achieving rolling friction through point contact, thereby greatly reducing mechanical energy loss. In deep groove structures, the raceway is machined into an arc slightly larger than the radius of the rolling ball. This design allows the bearing to withstand radial loads while also handling bidirectional axial loads to a certain extent. This is why it is so widely applied across various miniature rotating parts—it is sufficiently "versatile." However, based on differences in application scenarios, we have derived distinctions between micro ball bearings and mini ball bearings. The former focuses more on weight reduction in extreme spaces and is often used for supporting precision encoders or sensors, where requirements for starting friction torque are extremely high. The latter is used more for handling mechanical vibrations and is often found in remote-controlled models or small drive devices, where structural strength and sealing levels are prioritized. In cross-border engineering collaboration, the global interoperability of metric miniature bearings is extremely high. Compared to non-metric series, metric designs often have superior tolerance adaptability when matching shaft diameters. The following table compares the operational characteristics of metric miniature bearings across different precision grades: Precision Grade (ABEC/ISO) Typical Radial Runout Limit Recommended Application Scenarios Lubrication Friction Characteristics P0 (General Grade) Relatively high General industrial use, DIY models Stable friction coefficient P5 (Precision Grade) Stringent High-speed fans, high-speed motors Minimal frictional heat P4 (Ultra-precision Grade) Ultimate Medical scanning equipment, lab turntables Extremely low friction, minimal thermal expansion impact This classification system based on metric standards allows designers to achieve iterative performance upgrades in tiny spaces simply by changing the precision grade rather than the structure. Whether pursuing the ultimate rotational speed for a motor or requiring stringent noise levels for household precision equipment, metric miniature bearings provide the broadest engineering "language." Special Design Bearings: Addressing Complex Motion Requirements When a single radial support cannot meet complex dynamic environments, engineers must turn to bearing structures designed for specific mechanical properties. The "special designs" of miniature bearings are not merely changes in geometric shape, but are intended to distribute loads, limit displacement, or simplify assembly processes in tiny spaces. Miniature deep groove ball bearings remain the cornerstone of this field. Their raceway curvature radius is slightly larger than the steel ball radius, allowing the bearing to be in an ideal contact state when subjected to pure radial force. This design is highly suitable for high-speed rotation, and because its friction torque is small, it is often used in precision micromotors sensitive to energy efficiency. When facing situations requiring precise positioning and the presence of axial loads, miniature angular contact bearings demonstrate their advantages. Unlike deep groove ball bearings, their inner and outer ring raceways have relative displacement, specifically designed to withstand unidirectional axial loads or combined loads. These bearings are usually used in pairs, applying preload to eliminate axial clearance and enhance the rigidity of the entire rotating system. For forces perpendicular to the axis, miniature thrust bearings provide dedicated axial support. They function like a tiny "load-bearing gasket," effectively handling pressure from the shaft end. In addition, miniature flanged bearings are highly valuable in assembly. Their outer ring edge has a protruding flange, allowing the bearing to be positioned directly against the surface of a hole. This eliminates the need to machine complex notches in the housing, greatly simplifying the structural design of small equipment and ensuring axial stability. To assist in engineering decisions, the following table compares the load-handling capabilities of these special designs: Bearing Structure Type Radial Load Capacity Axial Load Capacity Ease of Installation Core Engineering Advantage Deep Groove Ball Bearings Excellent Fair High Versatile, adapts to high speeds Angular Contact Bearings Moderate High Moderate High rigidity, resists axial movement Miniature Thrust Bearings Very Low Ultimate Low Dedicated to continuous axial pressure Flanged Bearings Excellent Fair Very High Simplifies housing positioning, resists lateral shift When selecting these special bearings, the overall motion trajectory of the system must be considered. For instance, if equipment frequently experiences axial vibration during operation, choosing angular contact bearings or flanged deep groove ball bearings often significantly improves the overall lifespan and reliability more than simply pursuing a higher precision standard. Combining these structures reasonably is the key to achieving efficient rotation in miniature systems. The Application of Roller Technology in Miniature Fields While ball bearings dominate in miniature applications, tiny roller bearings are often the top choice for engineers when dealing with higher loads or extreme requirements for space rigidity. Unlike the point contact of ball bearings, roller bearings distribute loads over a wider area via line contact. This geometric advantage allows them to carry larger loads within smaller sizes. Miniature roller bearings usually come in forms such as cylindrical rollers, needle rollers, and tapered rollers. In extremely restricted spaces, such as in the output shafts of miniature gearboxes or small actuators, needle roller bearings become the prime choice for saving space in high-load environments due to their extremely thin cross-sectional height. However, the design of miniature roller bearings also faces unavoidable engineering constraints. Due to the line contact characteristic, stress concentration easily occurs at the ends of the rollers. Furthermore, during high-speed rotation, the relative sliding velocity between the rollers and the raceway is much higher than in ball bearings, leading to increased frictional heat, which imposes near-demanding requirements on the integrity of the lubricating oil film. To ensure the stable operation of miniature rollers at high speeds, structural optimization of the cage is the core of the design. The cage not only secures the position of the rollers but also guides lubricant within the tiny gaps, reducing "skewing" wear caused by rolling element tilting. The following is a performance comparison between roller bearings and ball bearings in miniature application environments: Performance Dimension Miniature Roller Bearings Miniature Ball Bearings Radial Load Capacity High (Line contact) Moderate (Point contact) Limiting Speed Lower (Higher frictional heat) Extremely High (Lower frictional heat) Space Usage (Cross-section) Extremely Low (Needle type) Moderate Axial Load Capacity Almost zero (unless special structure) Moderate Sensitivity to Misalignment High Lower Engineering Best Practices: When selecting roller technology, the operating conditions of the equipment must be carefully evaluated. If the system needs to cope with high-frequency, intense radial impacts and the speed is within a controllable range, the durability of miniature roller bearings far exceeds that of ball bearings. Conversely, for precision motors pursuing low starting torque and high stability, avoid roller structures and use deep groove ball bearings. For miniature roller bearings, the choice of oil film determines the upper limit of their lifespan; it is recommended to introduce forced lubrication or highly targeted grease filling solutions during the design stage to handle the high local pressure brought by line contact. Precision Manufacturing and High-Performance Material Selection In the field of miniature transmission, the performance ceiling of a bearing is often determined by the combination of materials science and manufacturing processes. As applications expand into extreme environments (such as vacuum, ultra-low temperatures, and corrosive conditions), miniature ceramic bearings are increasingly entering the mainstream. Silicon nitride (Si3N4) as a core material has a density only 40% that of steel, meaning it significantly reduces centrifugal force during high-speed operation, thereby dramatically increasing the bearing's speed limit. Furthermore, the inherent electrical insulation of ceramic material effectively avoids electrical erosion problems in miniature motors. However, the key to determining final product quality lies in the manufacturing tolerance control of precision miniature bearings. In the micrometer world, the roundness of the inner and outer rings, the surface roughness of the raceway, and the dimensional consistency of the rolling elements directly determine the noise level and lifespan of the equipment. The machining process for micro miniature bearings is extremely complex. It involves not only micro-machining, turning, and grinding but also a series of special control processes such as ultrasonic cleaning and clean-room assembly. Any microscopic dust or metal debris inside the bearing can become a "trigger" for failure. Therefore, the quality control system for miniature precision bearings typically includes fully automated laser inspection and vibration acceleration measurement to eliminate even the slightest processing flaws. To better understand the contribution of different materials and manufacturing grades to performance, the following table compares material properties and the influence of precision on bearing performance: Key Parameters Chrome Steel (Standard) Full Ceramic (Silicon Nitride) Hybrid Ceramic (Steel Ring + Ceramic Ball) Density High Low (Lightweight) Moderate Thermal Expansion High Low (Resists deformation) Moderate Electrical Insulation None Excellent Good Lubrication Dependency High Low (Can run dry) Moderate Typical Environment General Industry Aerospace/Extreme Environments High-speed Motors/High-performance Rotors In practical selection, one cannot simply assume that ceramic material is the "master key." While ceramic bearings hold an absolute advantage in speed and chemical resistance, precision steel bearings perform better in toughness and impact resistance. If your application environment involves frequent start-stop impacts, even in high-performance scenarios, a hybrid ceramic structure is often the best balance between cost and lifespan. Additionally, manufacturing precision grades (e.g., ABEC 5 vs. ABEC 7) have significant performance differences in miniature applications. ABEC 5 grade bearings are suitable for the vast majority of precision speed control scenarios, while ABEC 7 or higher grade bearings mean smaller vibration amplitudes and higher rotational consistency, which is critical in precision optical instruments or high-frequency vibration sensing equipment. Choosing the right grade of bearing is essentially "customizing" the performance boundary for the equipment's operating environment. Best Practices for Installation, Lubrication, and Troubleshooting Even with top-tier precision bearings, performance will be severely compromised if installation and maintenance methods are improper. In the field of miniature transmission, "precision" is not only reflected in manufacturing but also in the respect for the installation environment. Cleanliness is a Lifeline: The clearance of miniature bearings is often only a few micrometers. If dust or metal particles invisible to the naked eye exist at the installation site, they will directly embed into the raceway, leading to premature wear. Operations must be carried out in a dry, clean, controlled environment (such as a clean workbench). Do not remove the bearing's sealed packaging prematurely to prevent contaminants from entering. Key Installation Methods: Directly striking the end face of the bearing inner or outer ring is strictly prohibited, as this will cause dents in the raceway from the rolling elements. A dedicated sleeve should be used to ensure uniform force on the face of the ring being interference-fitted. If conditions permit, a heat-fitting method can be used (slightly heating the bearing to about 80°C so it expands for easy installation onto the shaft). However, with miniature bearings, the heating time must be strictly controlled to prevent altering the material's heat treatment state or damaging the plastic cage. The "Golden Balance" of Lubrication: Excessive grease filling is one of the most common causes of miniature bearing damage. In high-speed environments, too much grease creates intense stirring friction, leading to abnormal temperature rises and lubricant deterioration. Generally, the fill amount in a miniature bearing should be controlled to between one-third and one-half of the internal space. Comparison of lubrication strategies for different application scenarios: Lubrication Type Applicable Conditions Advantages Limitations Light Mineral Oil Very high speed, light load Extremely low resistance, good heat dissipation Short duration, easy to leak Synthetic High-Temp Grease Med-high speed, long duration Strong adhesion, long life Higher starting resistance Solid Lubrication (MoS2) Vacuum, extreme temp swings No evaporation, non-contaminating Limited life, lower load capacity A Quick Guide to Troubleshooting: If abnormalities occur during bearing operation, the cause of failure can be initially judged through the following characteristics: Increased Noise: Usually caused by lubrication failure or flaking due to tiny foreign particles in the raceway. Check if the seal is loose. High Temperature: Primarily check for excessive grease filling or an overly tight installation fit (clearance completely eliminated). Rough Rotation: Check for fretting wear or if the housing hole caused inner ring deformation due to machining errors. Remember, failures in miniature bearings are often not due to the quality of the bearing itself, but because the tolerances of the mating parts (shaft or housing) were not designed properly. Regularly monitoring temperature rise and vibration frequency can often reveal problems before the bearing fails completely. Frequently Asked Questions (FAQ) Q1: How to distinguish between deep groove and angular contact structures in miniature bearings? Visually, the inner and outer ring shoulders of a deep groove ball bearing are symmetrical and can handle bidirectional axial loads. In contrast, the shoulders of an angular contact bearing are typically asymmetrical (one high, one low), which dictates that it can only withstand unidirectional axial loads. If you select the wrong orientation in a device, the bearing will fail quickly as the load point exceeds the raceway. Q2: Are ceramic materials always better than steel when choosing miniature bearings? Not necessarily. While silicon nitride balls possess excellent wear resistance and speed limits, the hardness difference between ceramic balls and metal raceways can cause plastic deformation of the raceway under intense impact. If you are pursuing high speed and insulation, choose ceramic; if you are looking for cost-effectiveness and impact resistance, high-quality chrome steel remains the industry mainstream. Q3: Why does my miniature equipment produce noise soon after running? In the vast majority of cases, it is a lubrication issue or contamination. It is recommended to check whether the seal ring was crushed during installation. Additionally, if the fit tolerance between the shaft and the bearing inner bore is too tight, the original tiny clearance will be "crushed," forcing the balls to slide rather than roll, resulting in a whistling sound. Q4: Can metric and imperial miniature bearings be interchanged? No. The size systems for metric (e.g., ISO standard) and imperial (e.g., R-series bearings) are completely different. Even if the values look similar, their combinations of inner diameter, outer diameter, and width often differ. Forced interchange will lead to loose fits or inability to assemble. Design benchmarks must be determined. Q5: What are the special precautions for installing flanged bearings? The flange is a positioning surface; ensure it fits perfectly against the housing end face during installation. If the flange face is subjected to uneven force due to tilting during press-fitting, it is very easy to cause breakage at the connection between the flange and the outer ring. Using a flat-faced press tool can effectively reduce such risks. Q6: How should the preload of miniature bearings be controlled? In systems requiring high rotational precision, preload is necessary, usually achieved through wave spring washers or adjustment shims. If the preload is too high, frictional heat increases; if too low, system vibration cannot be suppressed. It is recommended to account for the thermal expansion coefficient of the device during operation and leave a tiny margin of clearance.
